316 316L Stainless Steel Coil

The corrosion resistance, and high temperature strength of 316 stainless steel have been greatly improved due to the addition of Mo element. The high temperature resistance can reach 1200-1300 degrees and can be used under harsh conditions.

Stainless Steel Coil

Get a price

hiddenValue

Product Detail
| Technical Information
| Packaging

Commodity name: 316 316L Stainless Steel Coil

316 316L Stainless Steel Coil Strip Specifications:

Grades	Stainless Steel J1, J2, J4, 201, 202, 301, 304, 304H, 304L , 309, 309S, 310, 310S, 316, 316L, 316TI, 321, 321H, 347, 409, 410, 410S, 420, 430, 441, 904L
Thickness	0.2mm - 60mm
Width	3.2mm - 2000mm
Length	AS PER CUSTOMER'S REQUIREMENT
Type of Material	STAINLESS STEEL SOFT, DEEP DRAW, EXTRA DEEP DRAW, QUARTER HARD, HALF HARD,FULL HARD.

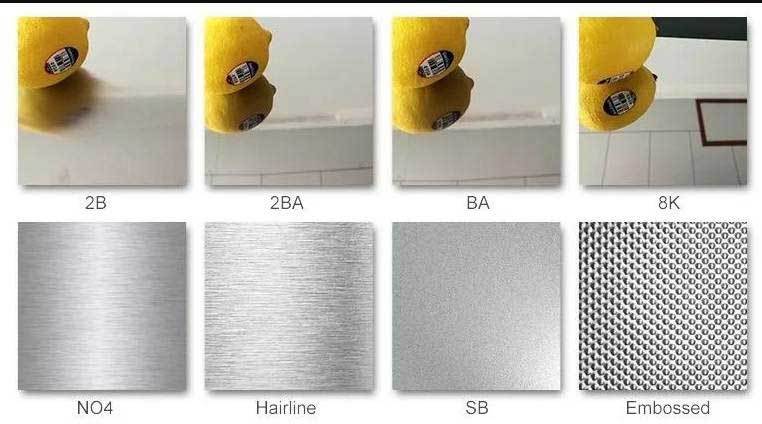

Finish	NO.1, 2B, 2D, 2H, 2R, No.4, HAIRLINE, SCOTCH BRITE, SATIN FINISH, NO.8, BA.
Standard	ASME, ASTM, AISI, EN, BS, GB, DIN, JIS, SUS, etc.
manufacture	Cold Rolled ,hot rolled
Application	Decoration,Industry,food processing and medical industry ,ships building industry etc.
Certification	SGS, BV, IQI, TUV, ISO, CE, etc
Coil Weight	3-10 Tons Or As Your Requirements
Tolerance	±1%
MOQ	1 ton
Supply Ability	5000 tons / month
Lead Time	7-15 working days after the receipt of 30% deposit
Payment Terms	30%T/T Advance + 70% Balance
Price Terms	FOB, CFR, CIF, EXW
Packing	Standard sea-worthy package or as required

Chemical Composition of 316/316L Stainless Steel Coil:

Grade	C	Si	Mn	P	S	Ni	Cr	Mo
201	≤0 .15	≤0 .75	5. 5-7. 5	≤0.06	≤ 0.03	3.5 -5.5	16.0 -18.0	-
202	≤0 .15	≤L.0	7.5-10.0	≤0.06	≤ 0.03	4.0-6.0	17.0-19.0	-
301	≤0 .15	≤L.0	≤2.0	≤0.045	≤ 0.03	6.0-8.0	16.0-18.0	-
302	≤0 .15	≤1.0	≤2.0	≤0.035	≤ 0.03	8.0-10.0	17.0-19.0	-
304	≤0 .0.08	≤1.0	≤2.0	≤0.045	≤ 0.03	8.0-10.5	18.0-20.0	-
304L	≤0.03	≤1.0	≤2.0	≤0.035	≤ 0.03	9.0-13.0	18.0-20.0	-
309S	≤0.08	≤1.0	≤2.0	≤0.045	≤ 0.03	12.0-15.0	22.0-24.0	-
310S	≤0.08	≤1.5	≤2.0	≤0.035	≤ 0.03	19.0-22.0	24.0-26.0
316	≤0.08	≤1.0	≤2.0	≤0.045	≤ 0.03	10.0-14.0	16.0-18.0	2.0-3.0
316L	≤0 .03	≤1.0	≤2.0	≤0.045	≤ 0.03	12.0 -15.0	16 .0 -1 8.0	2.0 -3.0
321	≤ 0 .08	≤1.0	≤2.0	≤0.035	≤ 0.03	9.0 - 13 .0	17.0 -1 9.0	-
630	≤ 0 .07	≤1.0	≤1.0	≤0.035	≤ 0.03	3.0-5.0	15.5-17.5	-
631	≤0.09	≤1.0	≤1.0	≤0.030	≤0.035	6.50-7.75	16.0-18.0	-
904L	≤ 2 .0	≤0.045	≤1.0	≤0.035	-	23.0·28.0	19.0-23.0	4.0-5.0
2205	≤0.03	≤1.0	≤2.0	≤0.030	≤0.02	4.5-6.5	22.0-23.0	3.0-3.5
2507	≤0.03	≤0.8	≤1.2	≤0.035	≤0.02	6.0-8.0	24.0-26.0	3.0-5.0
2520	≤0.08	≤1.5	≤2.0	≤0.045	≤ 0.03	0.19 -0. 22	0. 24 -0 . 26	-
410	≤0.15	≤1.0	≤1.0	≤0.035	≤ 0.03	-	11.5-13.5	-
430	≤0.1 2	≤0.75	≤1.0	≤ 0.040	≤ 0.03	≤0.60	16.0 -18.0	-

Characteristics of 316 316L Stainless Steel Coil:

Excellent work hardening (non-magnetic);

Excellent high temperature strength;

No magnetism in solid solution state;

Cold rolled products have good gloss and beautiful appearance.

Uses: seawater equipment, chemical, dye, paper making, oxalic acid, fertilizer and other production equipment; Photography, food industry, coastal facilities, ropes, CD rods, bolts, nuts.

316L is widely used in the chemical industry because of its excellent corrosion resistance. 316L is also a derivative steel of 18-8 austenitic stainless steel, with 2 ~ 3% Mo added. On the basis of 316L, many steel grades are also derived. For example, 316Ti is derived after adding a small amount of Ti, 316N is derived after adding a small amount of N, and 317L is derived by increasing the content of Ni and mo.
